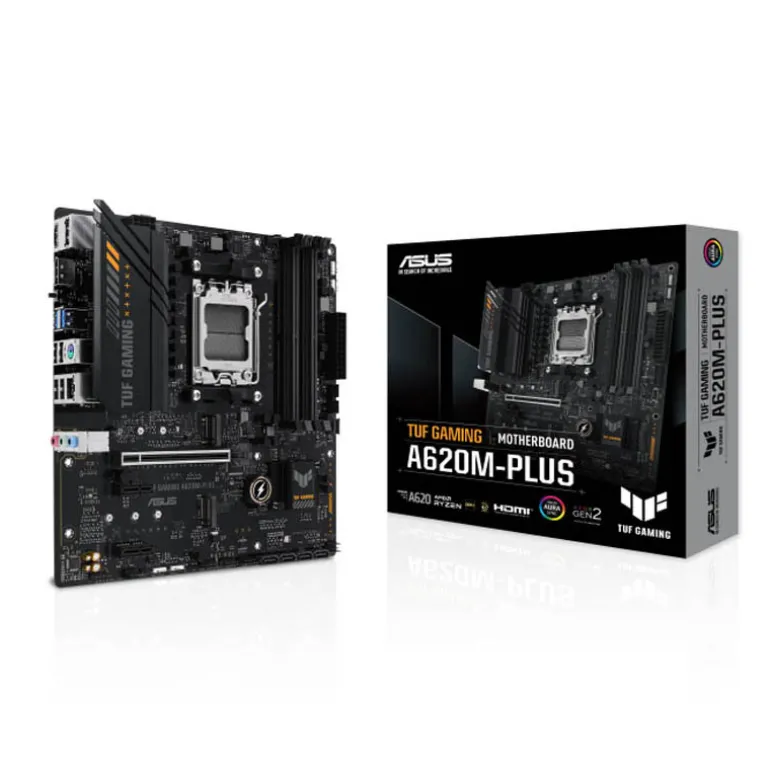

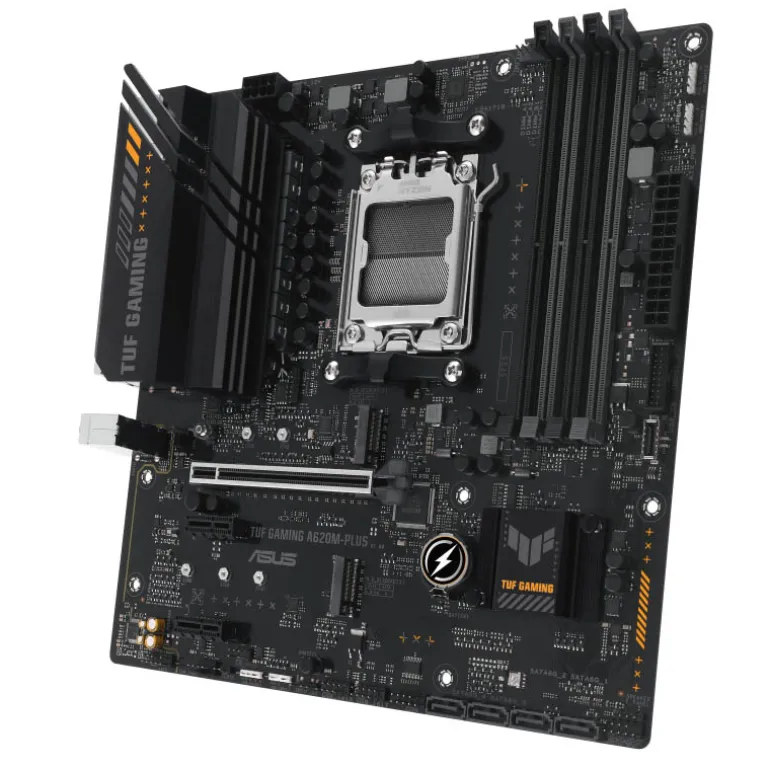

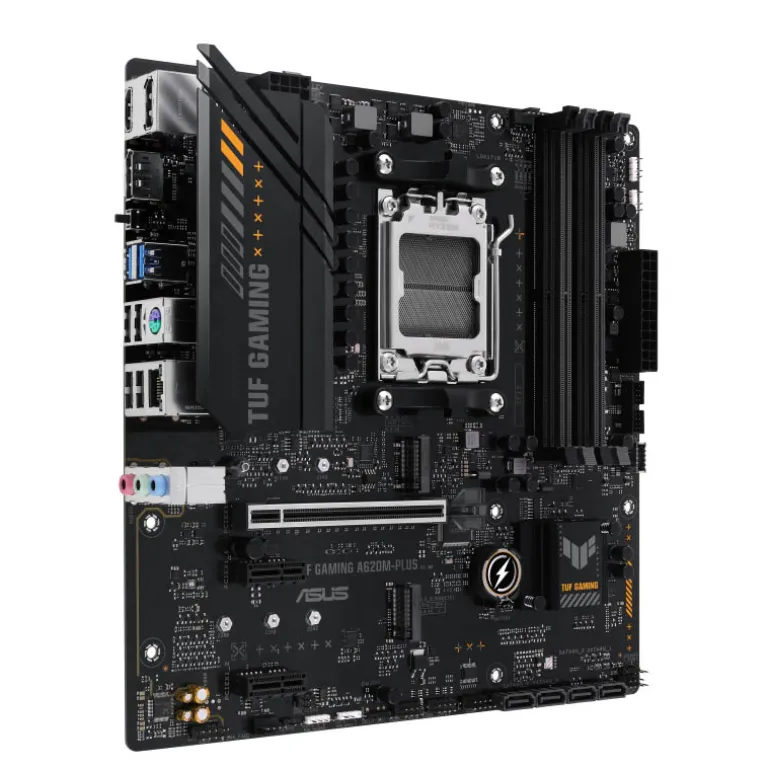

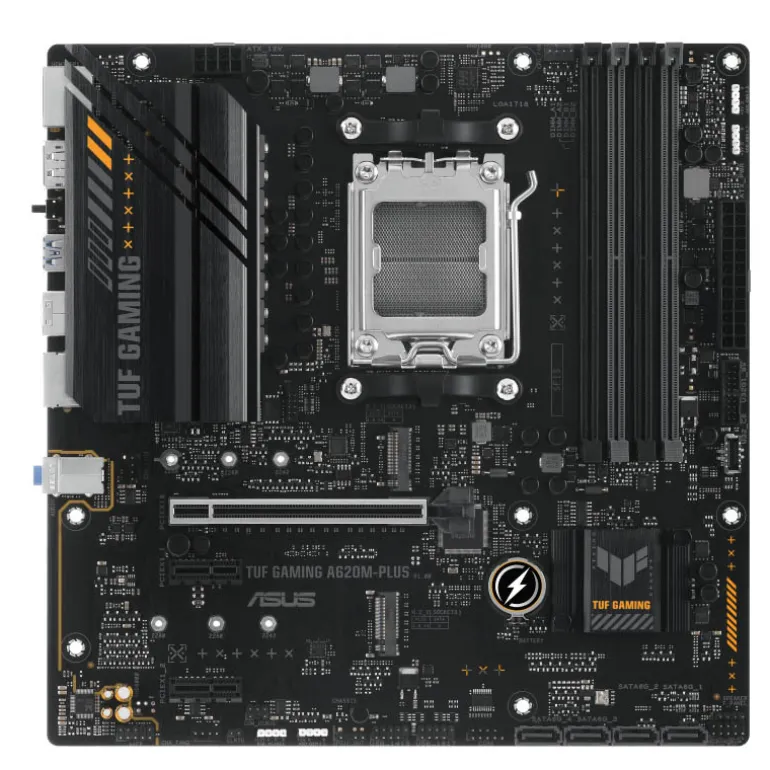

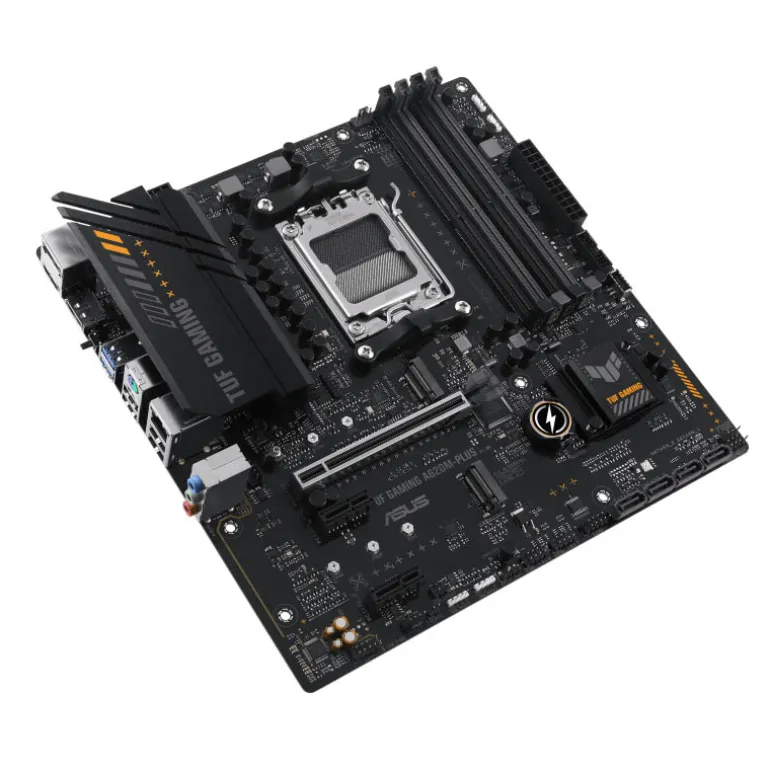

Placa Base Asus TUF Gaming A620M-PLUS Socket AM5

• AMD Socket AM5 for AMD Ryzen鈩
• * Refer to www.asus.com for CPU support list.

Chipset

• AMD A620 Chipset

Memoria

• 4 x DIMM slots, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory*
• Dual Channel Memory Architecture
• Supports AMD Extended Profiles for Overclocking (EXPO鈩
• OptiMem II
• * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.
• * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Gráfica

• 2 x DisplayPort**
• 1 x HDMI鈩
• * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
• ** Support max. 8K@60Hz as specified in DisplayPort 1.4.
• *** Supports 4K@60Hz as specified in HDMI 2.1.

Expansion Slots

• AMD Ryzen鈩
• 1 x PCIe 4.0 x16 slot
• AMD A620 Chipset
• 2 x PCIe 3.0 x1 slots
• * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
• – To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of  supported peripherals.

Almacenamiento

• Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
• AMD Ryzen鈩
• M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• AMD A620 Chipset
• 4 x SATA 6Gb/s ports
• * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.

Ethernet

• 1 x Realtek 2.5Gb Ethernet
• TUF LANGuard

USB

• Rear USB (Total 6 ports)
• 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• Front USB (Total 7 ports)
• 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C®)
• 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports

Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC*
• – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• – Supports up to 24-Bit/192 kHz playback
• Audio Features
• – Audio Shielding
• – Premium audio capacitors
• – Dedicated audio PCB layers
• * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

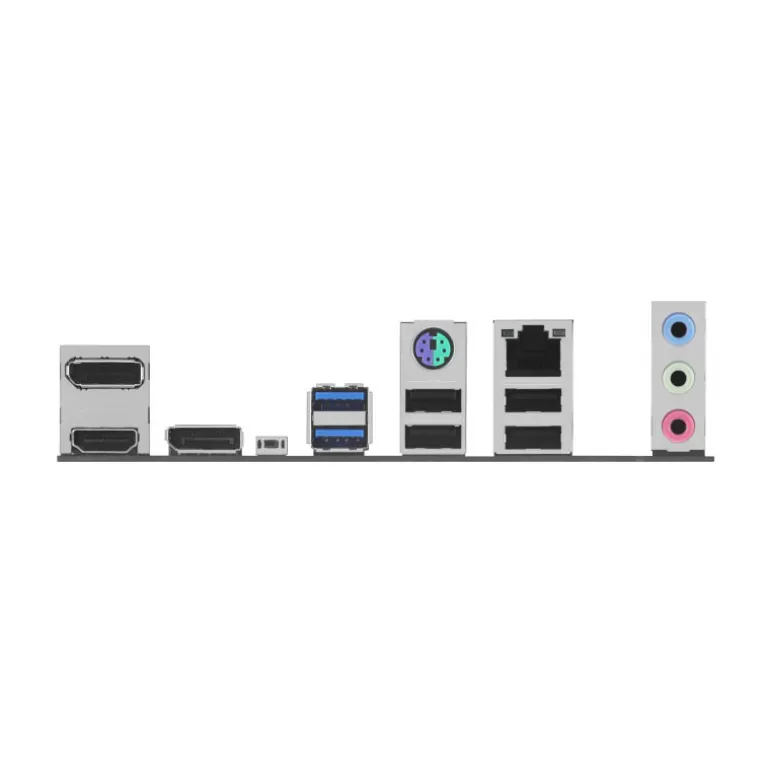

Panel Trasero I/O Ports

• 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• 2 x DisplayPort
• 1 x HDMI鈩
• 1 x Realtek 2.5Gb Ethernet port
• 3 x Audio jacks
• 1 x BIOS FlashBack鈩
• 1 x PS/2 Keyboard/Mouse combo port

Conectores Inernos I/O

• Fan and Cooling related
• 1 x 4-pin CPU Fan header
• 2 x 4-pin Chassis Fan headers
• Power related
• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V Power connector
• Storage related
• 2 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports
• USB
• 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C® )
• 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• Miscellaneous
• 3 x Addressable Gen 2 headers
• 1 x Aura RGB header
• 1 x Clear CMOS header
• 1 x COM Port header
• 1 x Front Panel Audio header (AAFP)
• 1 x S/PDIF Out header
• 1 x Speaker header
• 1 x 10-1 pin System Panel header

Características Especiales

• ASUS TUF PROTECTION
• – DIGI+ VRM
• – ESD Guards
• – TUF LANGuard
• – Overvoltage Protection
• – SafeSlot Core+
• – Stainless-Steel Back I/O
• ASUS Q-Design
• – M.2 Q-Latch
• – Q-DIMM
• – Q-LED Core
• – Q-Slot
• ASUS Thermal Solution
• – VRM heatsink design
• ASUS EZ DIY
• – BIOS FlashBack鈩
• – BIOS FlashBack鈩
• Aura Sync
• – Aura RGB header
• – Addressable Gen 2 headers

Características Software

• ASUS Exclusive Software
• Armoury Crate
• – Aura Creator
• – Aura Sync
• – Fan Xpert 2+
• – Power Saving
• – Two-Way AI Noise Cancellation
• AI Suite 3
• – TurboV EVO
• – DIGI+ VRM
• – PC Cleaner
• TUF GAMING CPU-Z
• Norton 360 for Gamers (60 Days Free Trial)
• WinRAR
• UEFI BIOS
• ASUS EZ DIY
• – ASUS CrashFree BIOS 3
• – ASUS EZ Flash 3
• – ASUS UEFI BIOS EZ Mode

BIOS

• 256 Mb Flash ROM, UEFI AMI BIOS

Manageability

• WOL by PME, PXE

Accessorios

• Cables
• 2 x SATA 6Gb/s cables
• Miscellaneous
• 1 x I/O Shield
• 1 x TUF Gaming sticker
• 1 x Screw package for M.2 SSD
• Documentation
• 1 x TUF Certification card
• 1 x User guide

Sistema Operativo

• Windows® 11, Windows® 10 64-bit

Factor Forma

• Micro-ATX Form Factor
• 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
