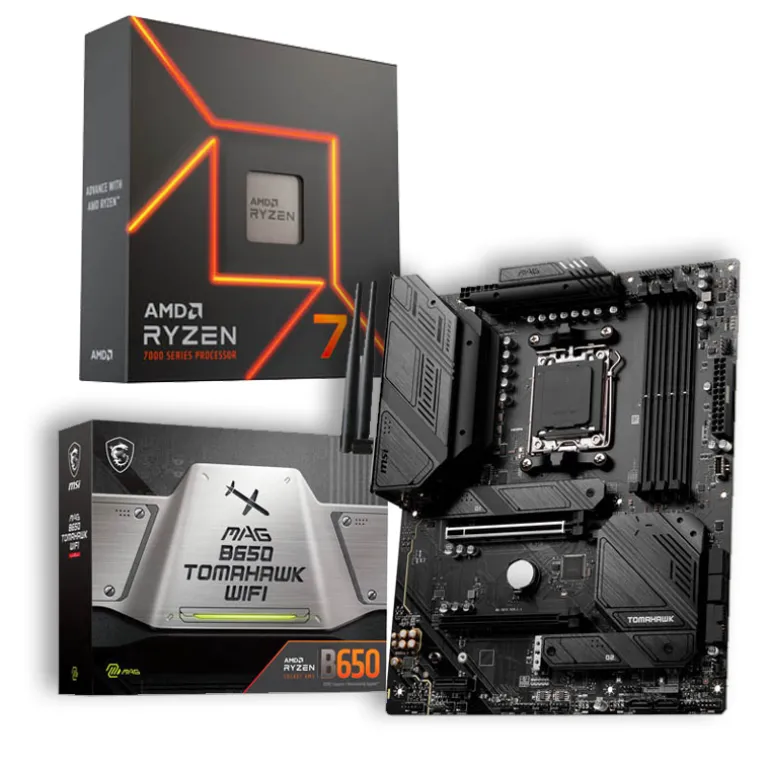

Pack  MSI MAG B650 TOMAHAWK WIFI + Ryzen 7 7700X

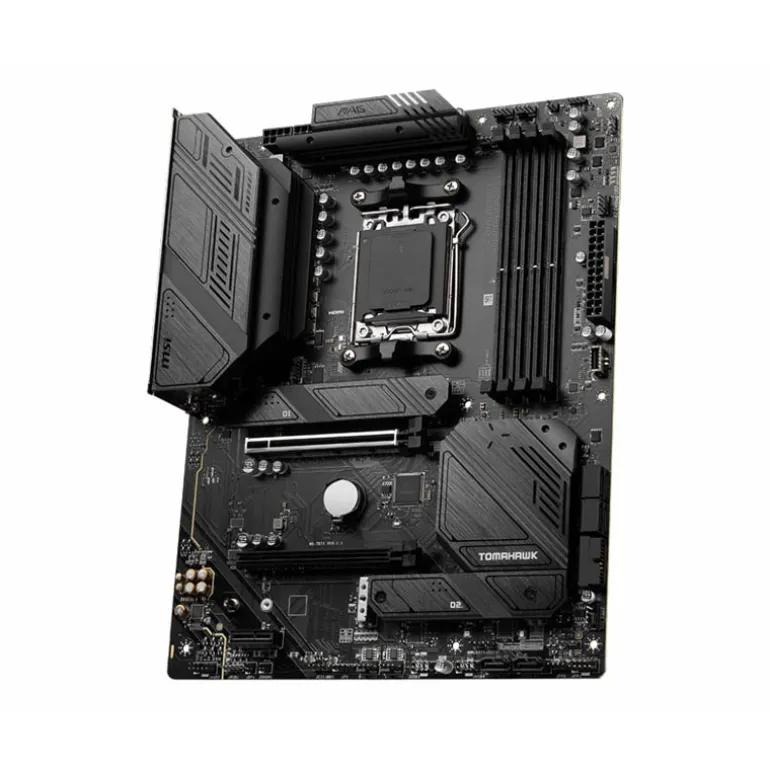

Placa Base MSI MAG B650 TOMAHAWK WIFI Socket AM5

• CHIPSET:  AMD B650
• CPU SUPPORT:
  • Supports AMD Ryzen鈩
  • Socket AM5
• MEMORY
  • 4x DDR5, Maximum Memory Capacity 128GB
  • Memory Support DDR5 6000+(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
• ONBOARD GRAPHICS
  • 1x HDMI鈩>
  • 1x DisplayPort
  • Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*
  • Support DP 1.4, maximum resolution of 8K 60Hz*
  • *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
• EXPANSION SLOT
  • 2x PCI-E x16 slot
  • Support x16/ x4
  • 1x PCI-E x1 slot
  • PCI_E1 PCIe 4.0 supports up to x16 (From CPU)
  • PCI_E2 PCIe 4.0 supports up to x4 (From Chipset)
  • PCI_E3 PCIe 3.0 supports up to x1 (From Chipset)
• STORAGE
  • 3x M.2 slot
  • M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
  • M.2_2 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
  • M.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
  • 6x SATA 6G port
• RAID
  • Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices*
  • Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
  • * SATA_A1_A2 do not support RAID function.
• USB
  • 2x USB 2.0 (Rear)
  • 4x USB 2.0 (Front)
  • 4x USB 3.2 Gen1 Type A (Rear)
  • 2x USB 3.2 Gen1 Type A (Front)
  • 3x USB 3.2 Gen2 Type A (Rear)
  • 1x USB 3.2 Gen2 Type C (Front)
  • 1x USB 3.2 Gen2x2 Type C (Rear)
• LAN:   Realtek® RTL8125B 2.5Gbps LAN
• WIRELESS / BLUETOOTH
  • AMD Wi-Fi 6E
  • The Wireless module is pre-installed in the M.2 (Key-E) slot
  • Supports MU-MIMO TX/RX
  • Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
  • Supports 802.11 a/ b/ g/ n/ ac/ ax
  • Supports Bluetooth® 5.2**
  • «* Wi-Fi 6E 6GHz may depend on every country鈥檚 regulations and will be ready in Windows 10 build 21H1 and Windows 11.
  • ** Bluetooth 5.2 will be ready in Windows 10 build 21H1 and Windows 11.»
• AUDIO
  • Realtek® ALC4080 Codec
  • 7.1-Channel High Performance Audio
  • Supports S/PDIF output
  • Supports up to 32-Bit/384 kHz playback on front panel
• INTERNAL I/O
  • 1x Power Connector(ATX_PWR)
  • 2x Power Connector(CPU_PWR)
  • 1x CPU Fan
  • 1x Pump Fan
  • 6x System Fan
  • 2x Front Panel (JFP)
  • 1x Chassis Intrusion (JCI)
  • 1x Front Audio (JAUD)
  • 1x Tuning Controller connector(JDASH)
  • 2x Addressable V2 RGB LED connector (JARGB_V2)
  • 2x RGB LED connector(JRGB)
  • 1x TPM pin header(Support TPM 2.0)
  • 4x USB 2.0
  • 2x USB 3.2 Gen1 Type A
  • 1x USB 3.2 Gen2 Type C
• LED FEATURE:  4x EZ Debug LED

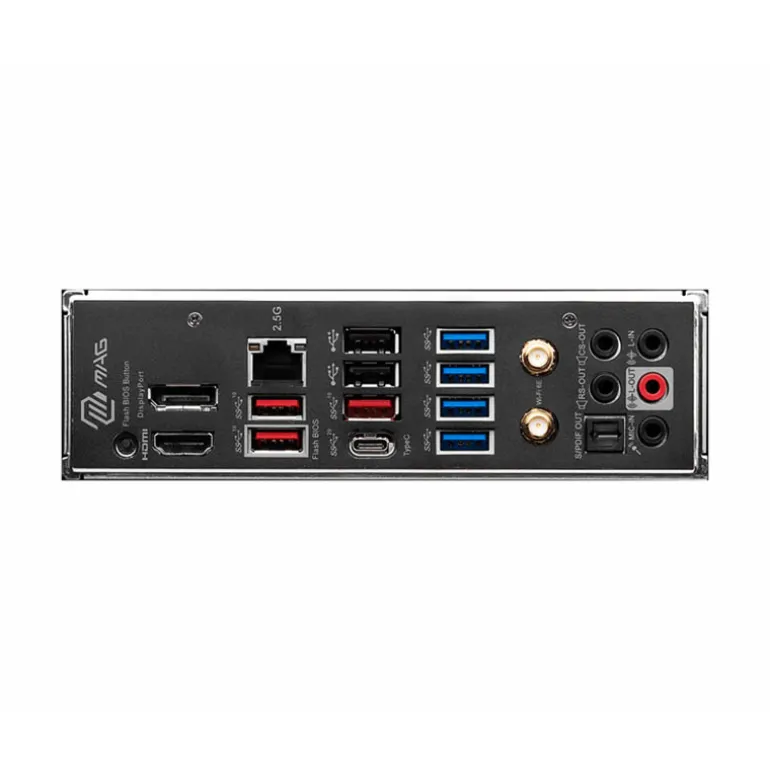

• BACK PANEL PORTS
  • DisplayPort 1.4
  • 2.5G LAN Port
  • USB 2.0 Port
  • USB 3.2 Gen 1 5Gbps Type-A
  • Wi-Fi / Bluetooth Antenna
  • HD Audio Connectors
  • Flash BIOS Button
  • HDMI鈩
  • USB 3.2 Gen 2 10Gbps Type-A
  • USB 3.2 Gen 2×2 20Gbps Type-C
  • Optical S/PDIF OUT
• OPERATING SYSTEM:  Support for Windows® 11 64-bit, Windows® 10 64-bit
• PCB DIMENSION:  ATX, 243.84mmx304.8mm

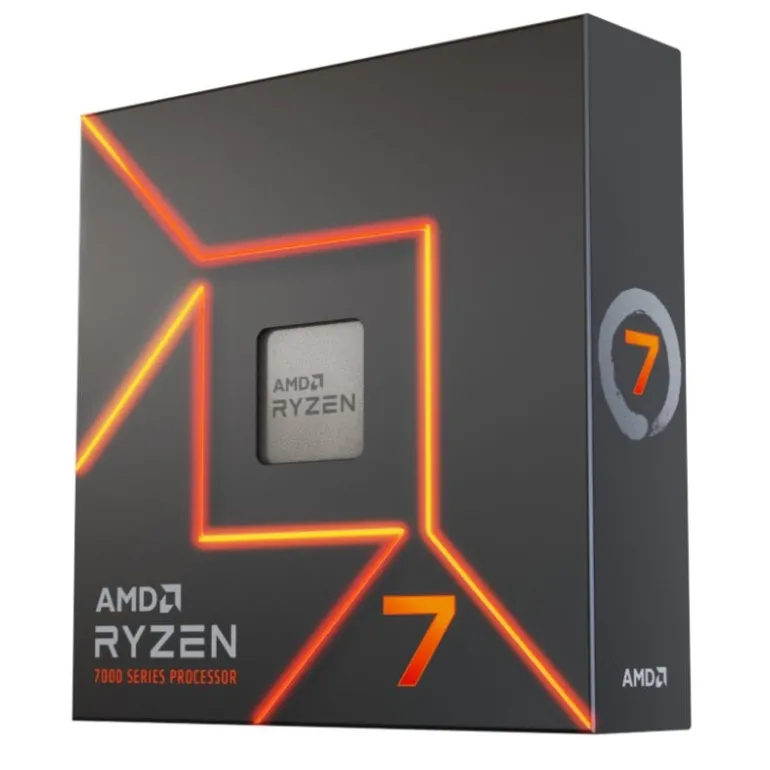

Procesador AMD Ryzen 7 7700X 5.4GHz Socket AM5 Boxed


• Plataforma: Computadora de escritorio
• Familia de productos: AMD Ryzen鈩
• Línea de productos: AMD Ryzen鈩
• N.° de núcleos de CPU: 8
• N.° de subprocesos: 16
• Reloj de aumento máx.: Hasta 5.4GHz
• Reloj base: 4.5GHz
• Caché L1 total: 512KB
• Caché L2 total: 8MB
• Caché L3 total: 32MB
• TDP/TDP predeterminado: 105W
• Processor Technology for CPU Cores: TSMC 5nm FinFET
• Desbloqueados : Sí
• Socket: AM5
• Temp. máx.: 95°C
• *Compatible con SO:
  • Windows 11 – Edición de 64-bits
  • Windows 10 edición de 64·bits
  • RHEL x86 edición de 64·bits
  • Ubuntu x86 edición de 64·bits
  • *El soporte del sistema operativo (SO) variará según el fabricante.

Conectividad

• Canales de memoria: 2

Gráficos

• Modelo de gráficos: AMD Radeon鈩
• N.° de núcleos de GPU: 2
• Frecuencia de gráficos: 2200 MHz
• GPU básica: 400 MHz
