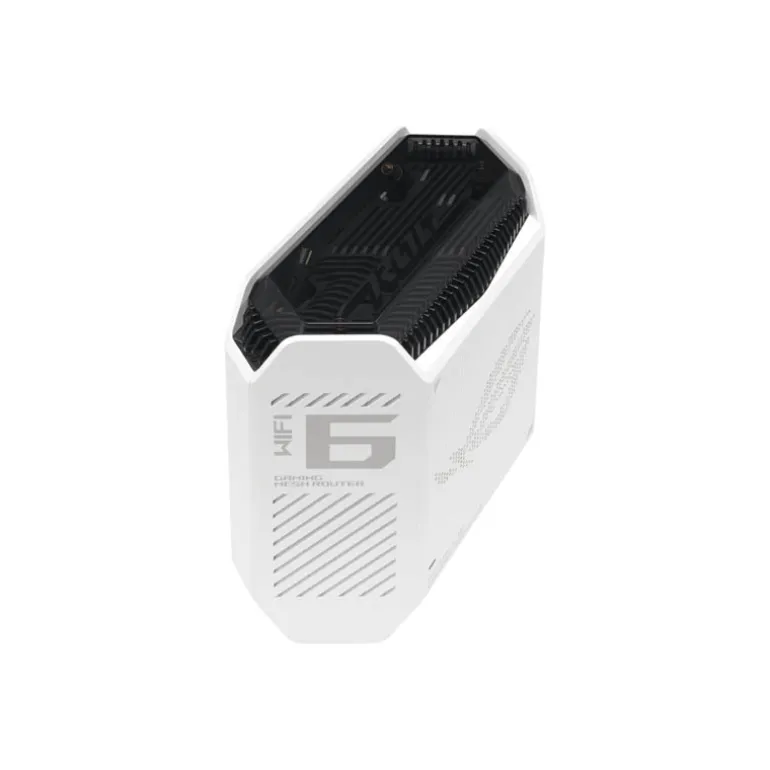

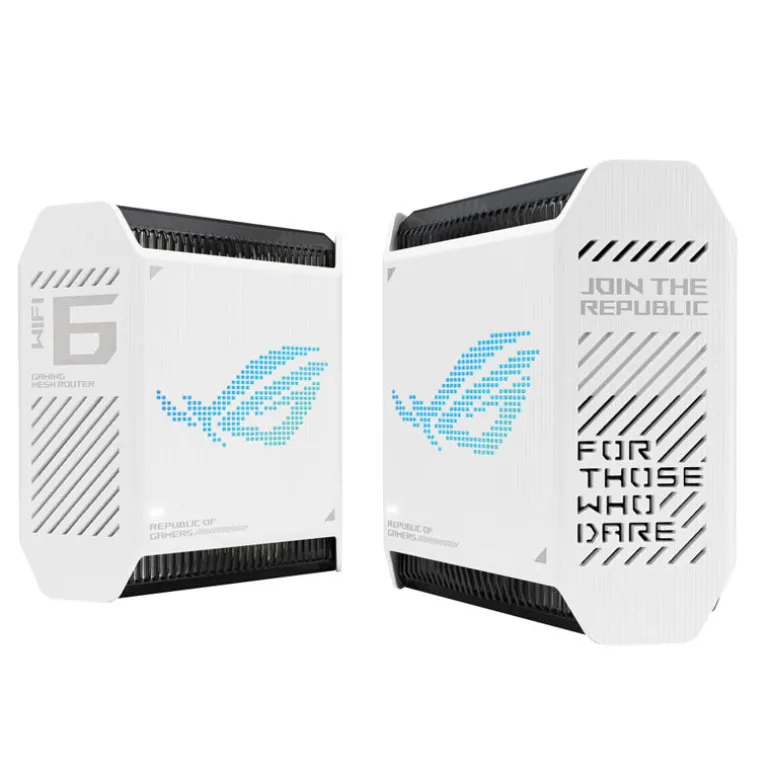

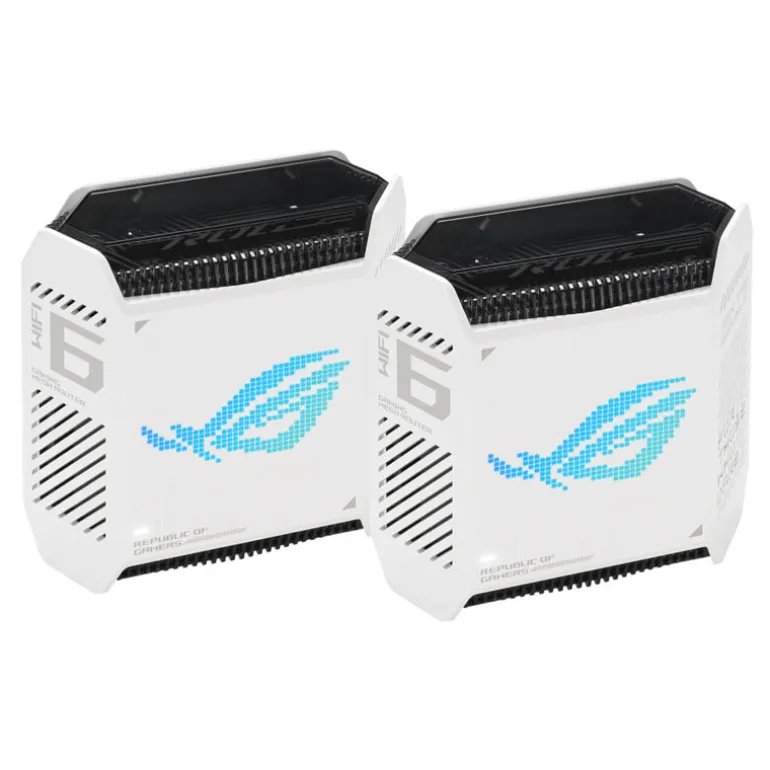

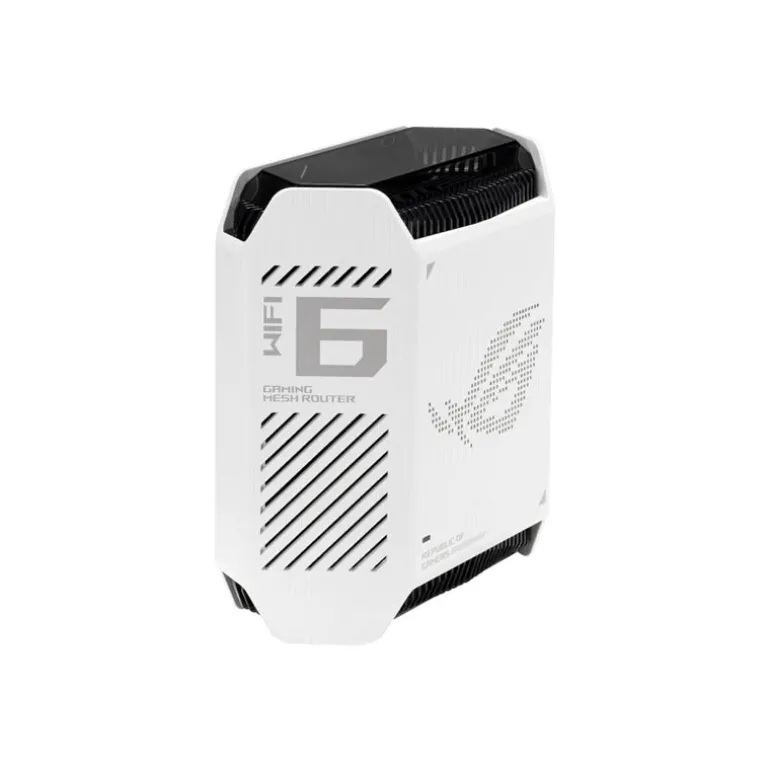

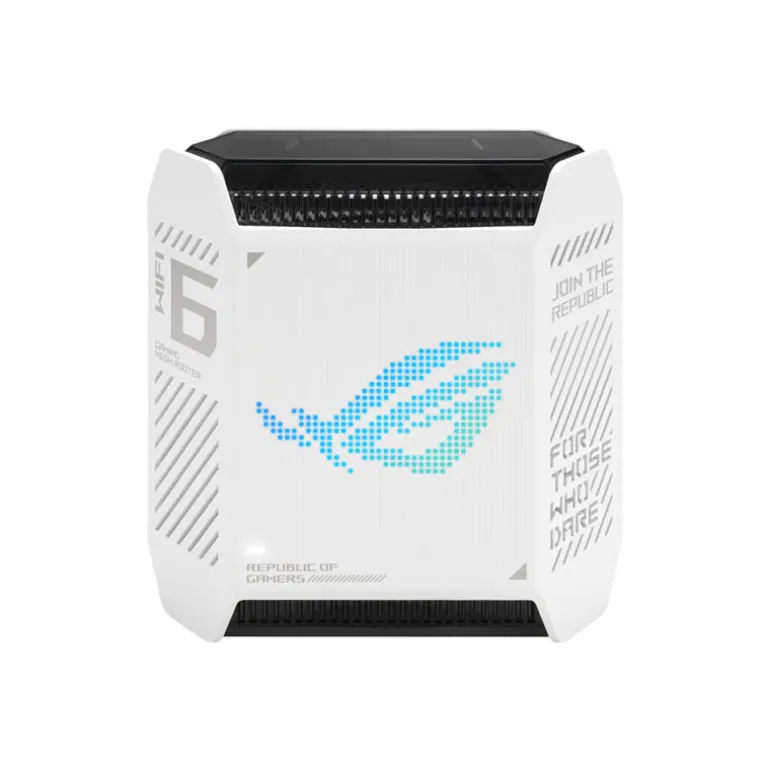

Kit Extensor Asus ROG Rapture GT6 2ud Blanco

• WiFi 6 (802.11ax)
• IPv4
• IPv6
• Backwards compatible with 802.11a/b/g/n/ac Wi-Fi

Product Segment

• AX10000 ultimate AX performance

AX technology

• Yes

Data Rate

• 2.4GHz AX: 2×2 (Tx/Rx) 1024 QAM 20/40MHz, up to 574Mbps
• 5G-1Hz AX: 4×4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps
• 5G-2Hz AX: 4×4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps

Antenna

• Internal antenna x 9
• Transmit/Receive
  • 2.4GHz 2×2
  • 5GHz-1 4×4
  • 5GHz-2 4×4

Processor

• 1.7GHz tri-core processor

Memory

• 256MB Flash
• 512MB DDR4 RAM

Boosts speed

• OFDMA (Orthogonal Frequency Division Multiple Access)
• Beamforming: standard-based and universal
• 1024-QAM high data rate
• 20/40/80/160 MHz bandwidth
• * The 160MHz bandwidth may be unavailable in the 5GHz band in some regions / countries due to regulatory restrictions.

Operating Frequency

• 2.4G Hz, 5 GHz-1, 5 GHz-2

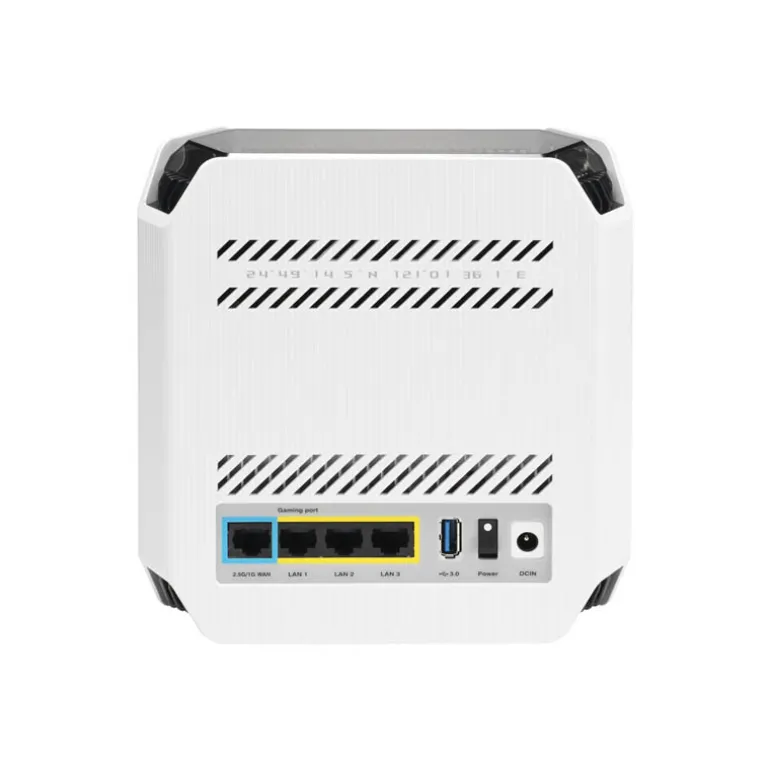

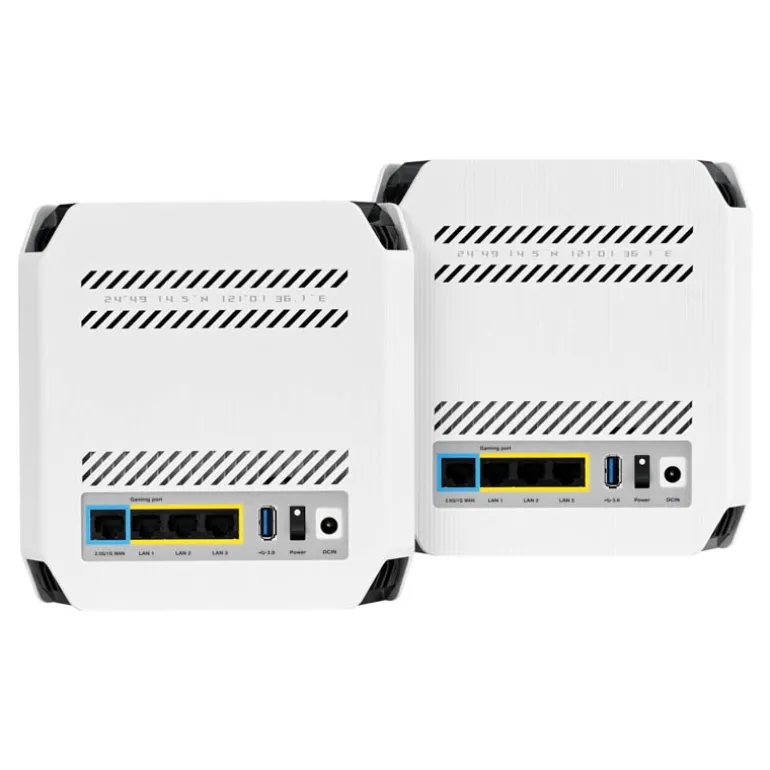

Ports

• 1 x 2.5 Gigabit WAN Port
• 3 x Gigabit LAN Ports
• 1 x USB 3.2 Gen 1×1 Port

Button

• WPS Button, Reset Button, Power Switch

LED Indicator

• Power x 1

Power Supply

• AC Input : 110V~240V(50~60Hz)
• DC Output : 19 V with max. 2.37 A current / 19.5 V with max. 2.31 A current

Package content

• ROG Rapture GT6
• RJ-45 Cable
• Power Adapter
• Quick Start Guide
• Warranty Card

Product Weight (g)

• 880 g

AiMesh

• AiMesh
• Primary AiMesh router
• AiMesh node

Router APP

• ASUS Router APP

Game

• Game Boost/acceleration
• Game Radar
• WTFast
• ROG_First
• OpenNAT (Game Profile)
• Gaming port

Alexa

• Support Alexa skill

AiProtection

• AiProtection Pro
• Router Security Assessment
• Malicious site blocking
• Two-Way IPS
• Infected Device Prevention and Blocking

Parental Control

• Parental Control
• Parental Control Customized Internet schedule

Traffic Control

• Adaptive QoS
• Bandwidth Monitor
• Bandwidth limiter
• Traditional QoS
• Traffic Monitor
• Real-time traffic monitor
• Wired Traffic Monitor
• Wireless Traffic Monitor
• Traffic Analyzer
• Traffic analysis period :Daily, Weekly, Monthly
• Website history

Wireless

• IPv6
• MU-MIMO
• WiFi Encryption :
• WPA3 Personal, WPA2 Personal, WPA Personal, WPA Enterprise, WPA2 Enterprise, Open System
• UTF-8 SSID
• Guest Network
• Guest Network Connection time limit
• WPS
• Wi-Fi MAC address filter
• Maximum MAC filters :64
• Wireless scheduler
• Wi-Fi Radar
• Airtime fairness
• RADIUS Client
• Universal beamforming

WAN

• Explicit beamforming
• Dual WAN
• 3G/4G LTE dongle
• Android tethering
• Port forwarding
• Maximum port forwarding rule :64
• Port triggering
• Maximum port triggering rule :32
• DMZ
• DDNS
• NAT Passthrough :PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough, PPPoE relay
• Let’s Encrypt
• Safe browsing
• DNS-over-TLS

LAN

• DHCP Server
• IGMP snooping
• IPTV
• LAN Link Aggregation
• Manually assign IP address

VPN

• VPN Client L2TP
• VPN Client OVPN
• VPN Client PPTP
• VPN Client WireGuard
• VPN Server IPSec
• VPN Server OVPN
• VPN Server PPTP
• VPN Server WireGuard
• VPN Fusion

USB application

• File System :HFS+, NTFS, vFAT, ext2, ext3, ext4
• HDD hibernation
• Safely Remove disk
• AiCloud
• Download master
• AiDisk
• Media Server
• Time Machine
• Samba Server
• FTP Server
• Shared Folder privileges

Administration

• Operating mode :
  • Wireless router mode
  • Access point mode
• Free OS upgrade
• Firewall
• Maximum Firewall keyword filter :Max 64 rules
• Maximum Firewall network service filter :Max 32 rules
• Maximum Firewall URL filter :Max 64 rules
• Wake on LAN (WOL)
• SSH
• Configuration backup and restore
• Diagnosis tools
• Feedback system
• System log
• New Device Connect Notification
• Login Captcha
• Connection Diagnosis
• Security Scan
• Auto Firmware Update
